| Recommended operating parameters | ||
| The minimum diameter of the drums, mm | Maximum effective working angle | Opportunity to work in the basin |
| 315 | 35° | YES |
| B mm | b mm | b1 mm | t mm | |

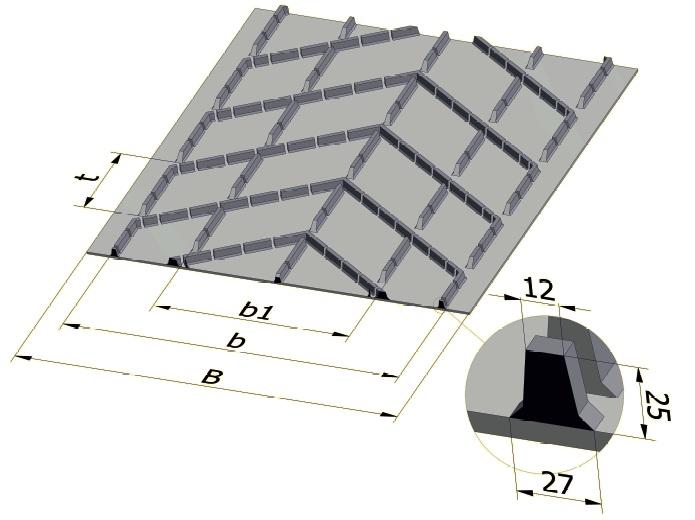

| Herringbone Profile 35º divided 25 mm | 400 500 650 800 1000 1200 | 235; 315 380; 465 530; 610 610; 760 825; 905 970; 1050 | – – – 320; 465 465; 615 615 | 285 |
