| Recommended operating parameters | ||
| The minimum diameter of the drums, mm | Maximum effective working angle | Opportunity to work in the basin |
| 315 | 35° | YES |
| B mm | b mm | t mm | |

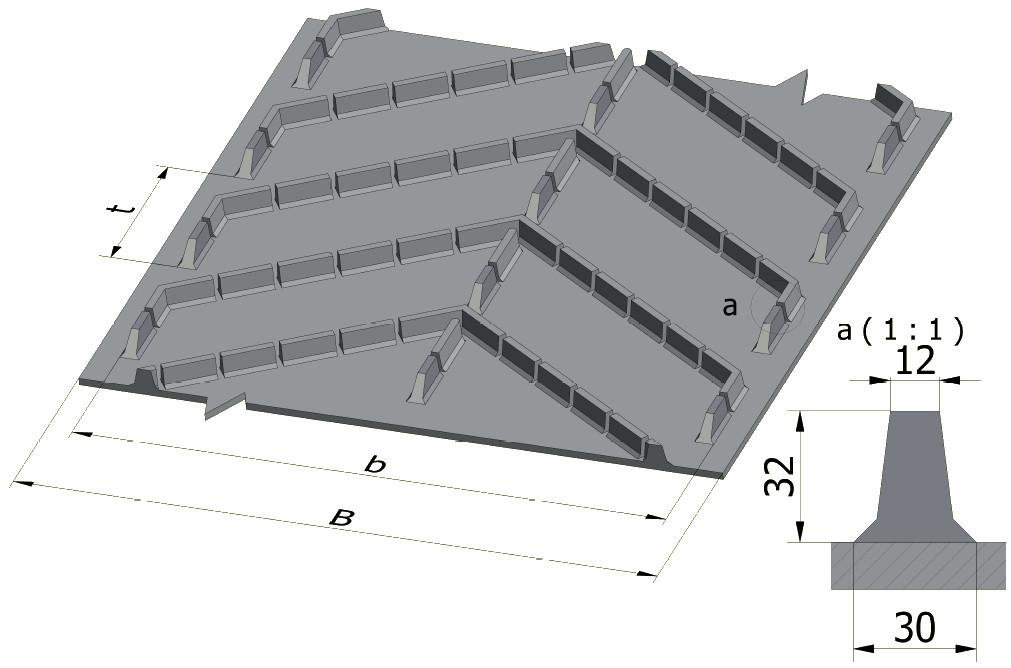

| Herringbone Profile 35º divided 32 mm | 300 ÷ 400 500 ÷600 650 ÷800 800 ÷1000 1000 ÷1200 | 300; 330 450; 480 595; 630 740; 775 890; 920 | 250 |
