Profile 50-46 | Chevron Belts

Profile 50-46:

Recommended operating parameters

The minimum diameter of the drums, mm

Maximum effective working angle

Opportunity to work in the basin

315

40°

Conditionally

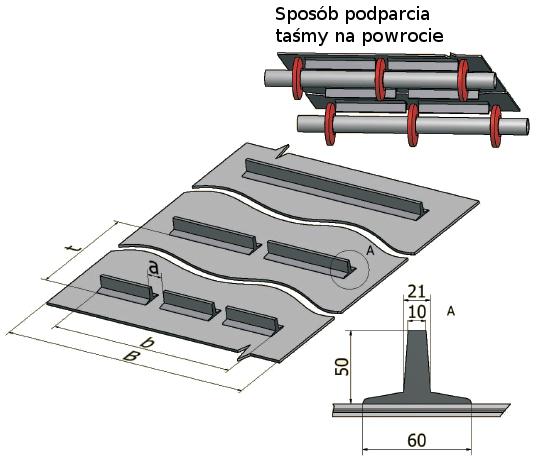

	B mm	b mm	a mm	t mm
Straight, two-part or three-part Profile	400 ÷ 1200	250; 300; 500; 650; 750; 900; 1000; 1250	to be agreed (30 ÷ 60)	to be agreed (150 ÷ 1000)
