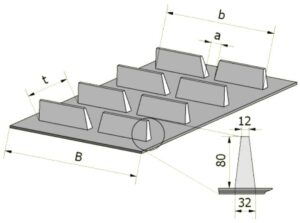

Profile 80-44: Recommended operating parameters The minimum diameter of the drums, mm Maximum effective working angle Opportunity to work in the basin 315 40° YES

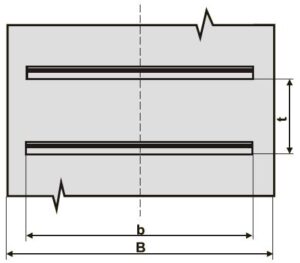

Profile 65-14: Recommended operating parameters The minimum diameter of the drums, mm Maximum effective working angle Opportunity to work in the basin 300 40° NO

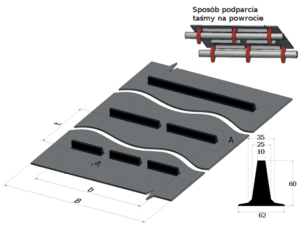

Profile 60-12c: Recommended operating parameters The minimum diameter of the drums, mm Maximum effective working angle Opportunity to work in the basin 315 40° Conditionally

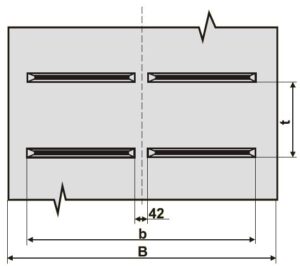

Profile 60-12b:   B mm b mm t mm Bipartite high cross profile 600 562 235 650 800 Back to Homepage

Profile 60-12a: Recommended operating parameters The minimum diameter of the drums, mm Maximum effective working angle Opportunity to work in the basin 315 45° YES

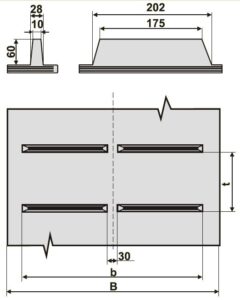

Profile 60-12:   B mm b mm t mm Cross Profile high two-part 500 434 122 600 650 Back to Homepage

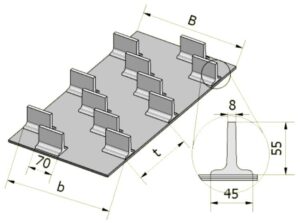

Profile 55-43: Recommended operating parameters The minimum diameter of the drums, mm Maximum effective working angle Opportunity to work in the basin 250 40° YES

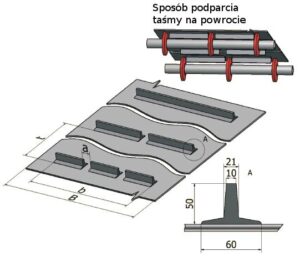

Profile 50-46: Recommended operating parameters The minimum diameter of the drums, mm Maximum effective working angle Opportunity to work in the basin 315 40° Conditionally

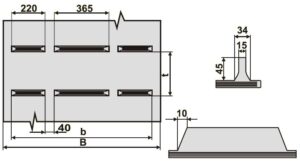

Profile 45-35: Recommended operating parameters The minimum diameter of the drums, mm Maximum effective working angle Opportunity to work in the basin 300 45° YES

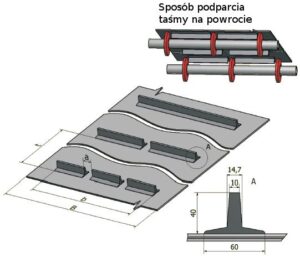

Profile 40-45: Recommended operating parameters The minimum diameter of the drums, mm Maximum effective working angle Opportunity to work in the basin 315 40° Conditionally
